Ai Dimning Dali Driver LED DT8 29W

Name: Ai Dimning Dali Driver LED DT8 29W
Brand: SARLUX ELECTRONICS
Price: 1260.0 INR
Availability: InStock

Price 1260.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces Pieces

Ai Dimning Dali Driver LED DT8 29W Specification

Current Rating
350mA to 700mA adjustable

Control Type
DALI DT8 (Tunable White) Dimming

Efficiency (%)
>88%

Operating Temperature
-20C to 45C

Response Time
< 1s

Shape
Rectangular

Light Color
Tunable White

Housing
Flame Retardant PC

Life Span
50,000 Hours

Humidity %
20-85% RH, non-condensing

Power Supply
AC Input

Product Type
DALI DT8 LED Driver

Material
Plastic Housing

Power Factor
0.95

Input Voltage
220-240V AC, 50/60Hz

Working Temperature
-20C to 45C

Lamp Power
29W

Application
LED Lighting, Commercial, Residential, Office

Size
Standard

Dimension (L*W*H)
150 40 22 Millimeter (mm)

Weight
130g

Color
white

LED Type
Constant Current LED Modules

Color Temperature
Tunable White (DT8)

IP Rating
IP20

Dimming Range
1-100%

Protection Features
Overload, Short-circuit, and Over-temperature Protection

Wiring Type
Push Terminal Block, for solid wire up to 1.5 mm2

Compliance Standard
ENEC, CE, RoHS

THD (Total Harmonic Distortion)
<15%

Output Voltage
25-42V DC

Mounting
Independent or built-in

Insulation Class
Class II

Ai Dimning Dali Driver LED DT8 29W Trade Information

Minimum Order Quantity
10 Pieces Pieces

Delivery Time
1 Week

About Ai Dimning Dali Driver LED DT8 29W

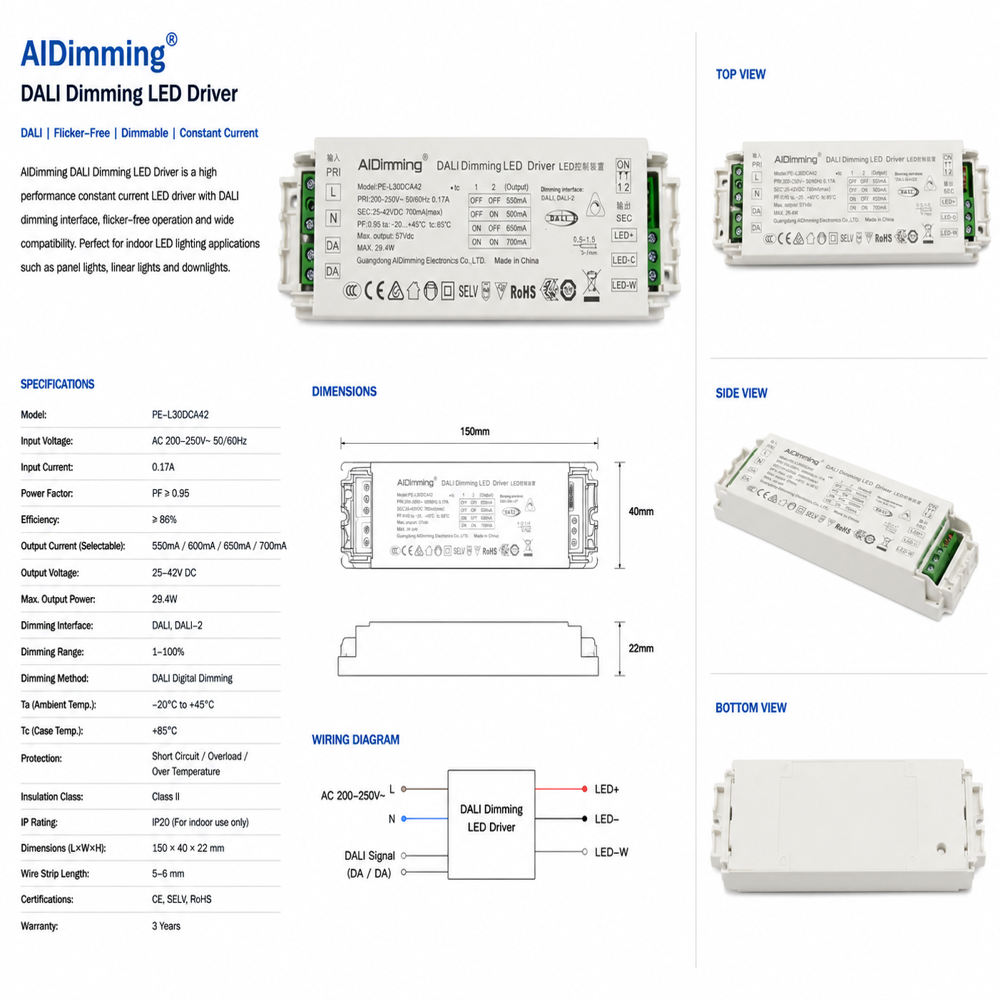

DALI Dimming LED Driver

DALI | Flicker-Free | Dimmable | Constant Current

AIDimming DALI Dimming LED Driver is a high performance constant current LED driver with DALI dimming interface, flicker-free operation and wide compatibility. Perfect for indoor LED lighting applications such as panel lights, linear lights and downlights.

Seamless Integration and Mounting

Designed for both independent and built-in installations, this driver utilizes a push terminal block for simple, secure wiring with solid wires up to 1.5 mm2. Its standard dimensions and lightweight, rectangular form enable easy integration into various lighting fixtures, streamlining setup for contractors and electricians alike.

Efficient DALI DT8 Control and Tunable White Lighting

With DALI DT8 compatibility, users benefit from precise dimming (1-100%) and adjustable color temperature for tunable white LED lighting. The rapid response time (<1s) ensures synchronization within smart lighting systems, contributing to comfortable and adaptable illumination environments in commercial and residential settings.

Built-in Safety and Long-lasting Performance

This LED driver is equipped with multiple protection mechanisms, including overload, short-circuit, and over-temperature safeguards. Its flame-retardant PC housing, high efficiency, and impressive 50,000-hour life span make it a dependable solution for long-term lighting projects, withstanding humidity levels from 20% to 85% (non-condensing).

FAQ's of Ai Dimning Dali Driver LED DT8 29W:

Q: How do I connect the Ai Dimning Dali Driver LED DT8 29W to my LED module?

A: Connect solid wires up to 1.5 mm2 from your constant current LED module to the push terminal block of the driver, ensuring correct polarity and current settings (350mA to 700mA adjustable) as per your LED module's specifications.

Q: What benefits does DALI DT8 control provide for lighting applications?

A: DALI DT8 enables precise dimming and tunable white light control, allowing seamless adjustment of brightness (1-100%) and color temperature to create optimal lighting environments for commercial, residential, or office settings.

Q: When should I consider using this driver for a new lighting installation?

A: Opt for this driver in applications requiring reliable, energy-efficient, and customizable LED lighting-especially where tunable white and DALI-based control are desired, such as in offices, retail spaces, or modern homes.

Q: Where can the Ai Dimning Dali Driver LED DT8 29W be mounted?

A: This driver supports both independent and built-in installations, making it suitable for integration inside luminaires or as a stand-alone component in ceiling or wall setups.

Q: What protection features are included, and how do they enhance safety?

A: The driver incorporates overload, short-circuit, and over-temperature protection, safeguarding the lighting system and connected modules from electrical faults and thermal risks. Its flame-retardant PC housing further increases safety.

Q: How does the driver handle varying environmental conditions?

A: Engineered to operate between -20C and 45C and in non-condensing humidity levels of 20-85%, the driver offers stable performance in diverse indoor environments.

Q: What is the expected lifespan and maintenance implication of this LED driver?

A: With a lifespan of up to 50,000 hours and robust construction, this driver minimizes maintenance needs, providing long-term reliability for both new installations and retrofit projects.
